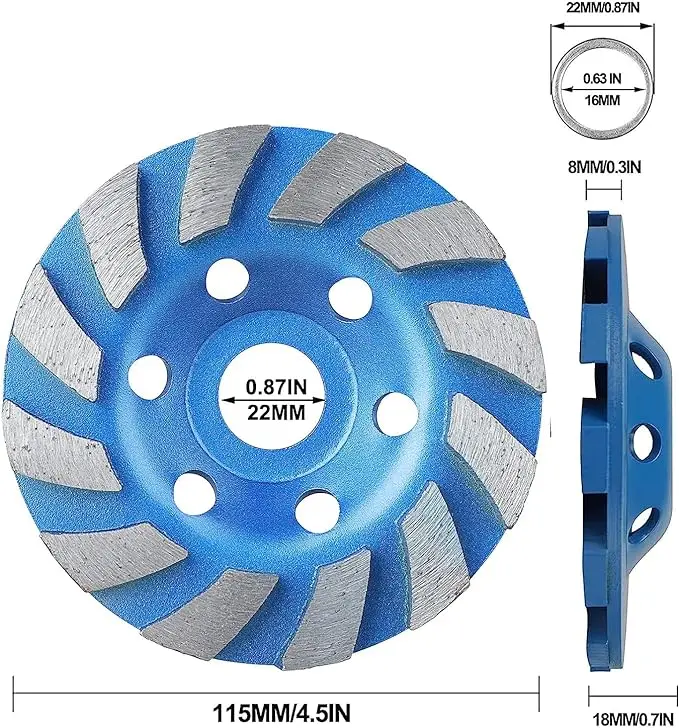

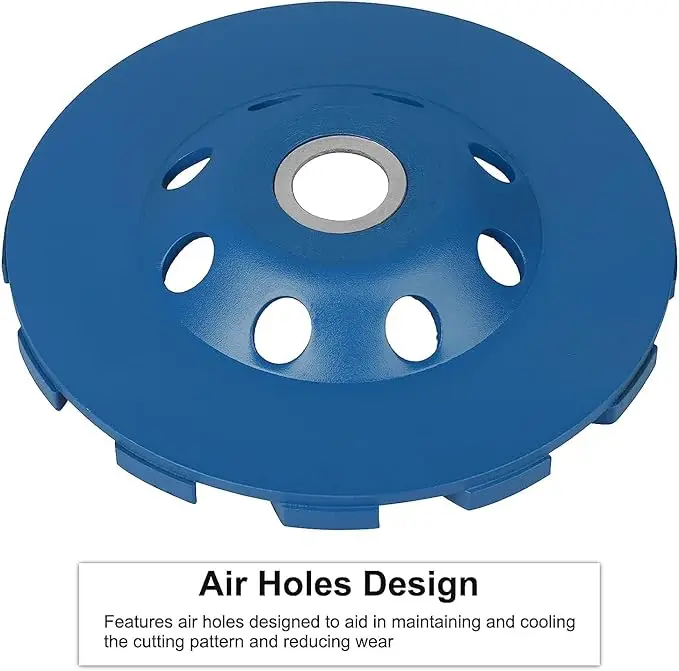

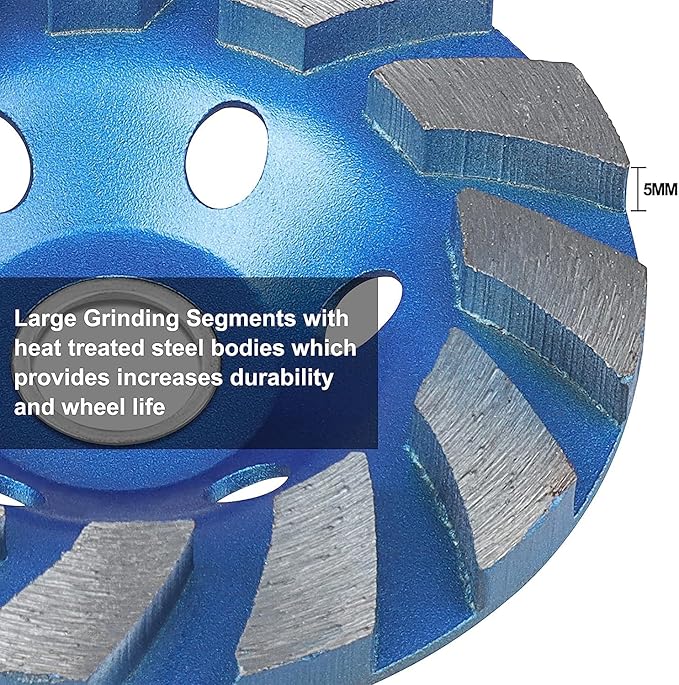

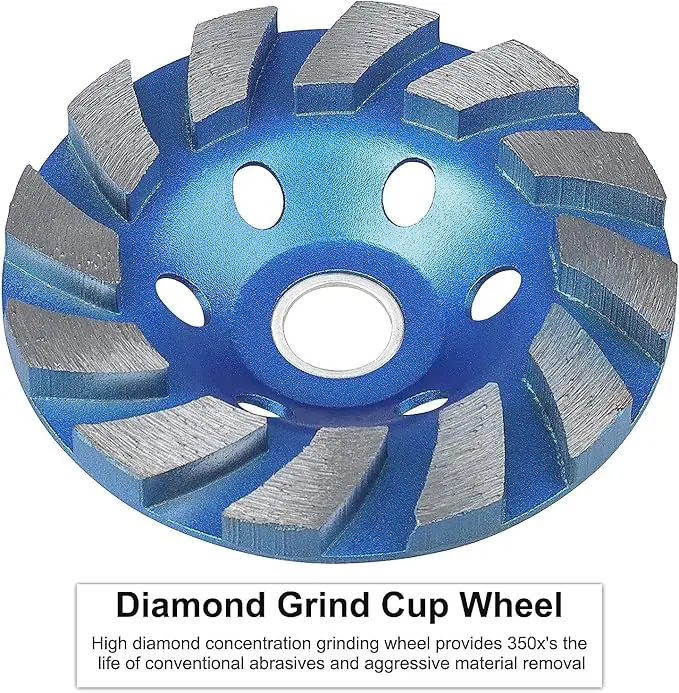

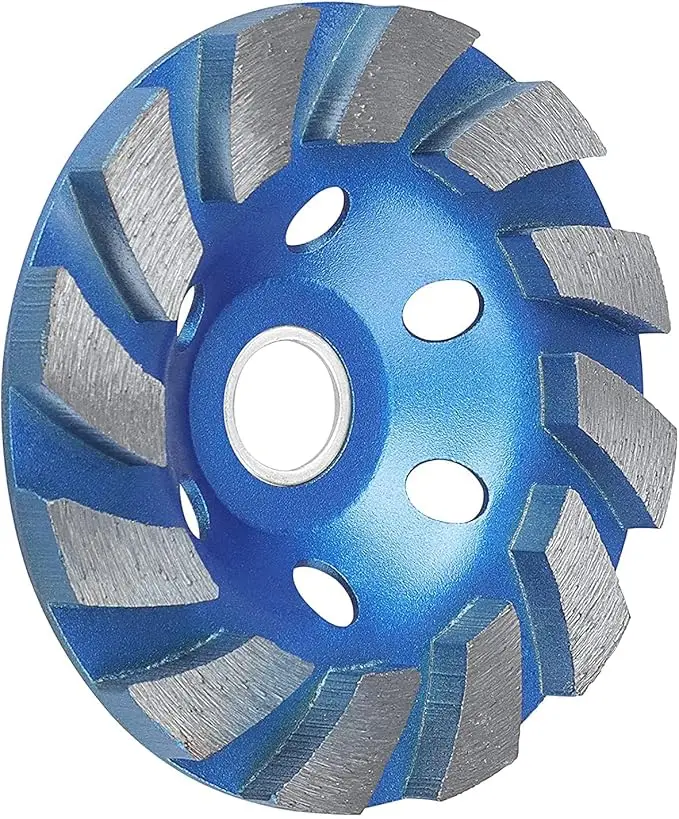

Segmented Turbo Diamond Grinding Wheel

Segmented Turbo Diamond Grinding Wheel

Segmented turbo diamond cup wheel for dry & wet grinding all concrete,stone, etc.Different segment design is available upon request.

￥ 0.00
0.00


Segmented turbo diamond cup wheel for dry & wet grinding all concrete,stone, etc.Different segment design is available upon request.


Article

Number

Diameter

（Inch/mm）

Segment Dimension

（mm）

Segment Number

Arbor Hole

（mm）

STD4

4”/100

5*8*30

8

20/22.23

STD4.5

4.5”/115

5*8*30

9

20/22.23

STD5

5”/125

5*8*30

10

20/22.23

STD6

6”/150

5*8*30

12

20/22.23

STD7

7”/180

5*8*30

14

20/22.23

STD9

9”/230

5*8*30

18

20/22.23


Product Description
Specification
item
value
Warranty
1 year
Application
Deburring
Thickness
5mm
Grit
50, 100/120, 30
Wheel Type
Angle Grinding Wheels
Customized support
OEM, ODM
Place of Origin
China

Zhejiang
Brand Name
WEHER
Model Number
WH-STD
Shape
Cup-Shaped
Hardness
aggressive-middle-fine
Viscosity

Size
4/4.5/5/6/7/9INCH
Application
Diamond Grinding Wheel
Usage
Dry
Feature
High Grinding Effciency
Packing
Customize Packing
Function

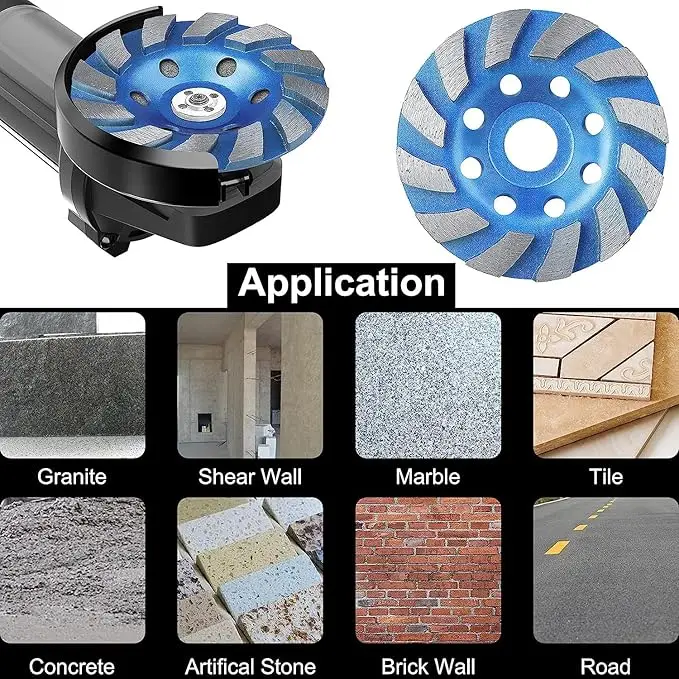

grinding concrete
Applicable machine
Angel Grinder
Shape
Cup-Shaped
Color
Customized Color
Process
Cold Press Sintered
Advantage
High Working Efficiency
Specification
